Author Topic: Pinging Sound  (Read 7957 times)

Offline MagneticMotorE

  • Confirmed
  • Junior Member
  • **
  • Posts: 38
Pinging Sound
« on: August 25, 2011, 06:13:19 AM »
why does my Magic Pie II make a pinging sound when cruising?

it sounds like something may be loose...
Logged

Offline Bikemad

  • Global Moderator
  • Professor
  • PhD. Magic
  • ******
  • Posts: 5,553
Re: Pinging Sound
« Reply #1 on: August 25, 2011, 10:42:02 AM »
If it's making a pinging noise when riding without a battery, it may be because the spokes are loosening as they settle in with use.
Check the tension of the spokes and re-tension them if required using a size 13 spoke key. Make sure you tension the spokes evenly to ensure the wheel remains true.

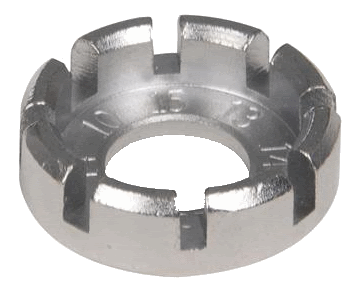

I use a universal spoke key like this:

It's cheap and cheerful, but does the job nicely.

The pinging noise from the motor under load is caused by the electromagnetic pulses from the stator windings.

Alan

« Last Edit: July 05, 2017, 06:05:28 PM by Bikemad »
Logged

Offline MagneticMotorE

  • Confirmed
  • Junior Member
  • **
  • Posts: 38
Re: Pinging Sound
« Reply #2 on: August 25, 2011, 05:50:12 PM »
you are truly helpful.. :D
Logged

Offline DirtyGinge

  • Confirmed
  • PhD. Magic
  • ******
  • Posts: 614
  • Im just trying to find my niche.3 e-bikes is fine
Re: Pinging Sound
« Reply #3 on: August 25, 2011, 08:54:20 PM »
my experience is that the new pies are shipping with very loose spokes...much better that you go to a bike shop and ask them to tighten for you, as you may pull the hub away from the middle......
Logged
Infineon lyen edition 12 Fet
Goldenmotor Magic pie rear ....2000 Watt peak
oh yea.....Im too fat :)...but cute, oh yea, im cute

Offline MagneticMotorE

  • Confirmed
  • Junior Member
  • **
  • Posts: 38
Re: Pinging Sound
« Reply #4 on: August 27, 2011, 06:48:35 PM »
i tighten it up already but I think I might consider the going to Bicycle Mechanic to Make Sure it is Balanced. Makes Much Sense!
Logged

Offline e-lmer

  • Technical Officer
  • Master of Magic
  • ******
  • Posts: 458
    • My page
Re: Pinging Sound
« Reply #5 on: August 27, 2011, 11:50:51 PM »
I have found the spokes actually loosen while
riding in my Magic Pie.  (It has been trued once.)

I have never had a double walled rim before, I think
that the inner tube has always pressed the spoke
caps and held them on other rims.

I just re-trued my rim after one cap actually came off
and fell into the rim.

I am going to put lock-tight on the caps after I ride and
re-true it once more.
Logged
