Author Topic: MP5 controller cover with m5 bolts for the disc  (Read 12672 times)

Offline Kneedeep

  • Confirmed
  • Junior Member
  • **
  • Posts: 37
MP5 controller cover with m5 bolts for the disc
« on: May 10, 2017, 04:18:20 PM »
I am looking for a MP5 controller cover with the M5 bolts for the disc. My MP5 cover has M6 bolts and I am forced to drill out the disc in order to mount. I drilled out one disc and it no longer runs true so have to drill another.

Offline Bikemad

  • Global Moderator
  • Professor
  • PhD. Magic
  • ******
  • Posts: 5,553
Re: MP5 controller cover with m5 bolts for the disc
« Reply #1 on: May 10, 2017, 11:18:41 PM »
When you say that it no longer runs true, does it have lateral movement, or is it no longer concentric with the axle?

Lateral runout could be due to burrs on the edges of the enlarged holes in the disc which are preventing the disc from sitting flat against the machined face.

If this is what's causing your disc to run out of true, it should be simple to fix by simply removing any unwanted burrs to allow the disc to seat correctly against the disc mount/cooling fan unit.

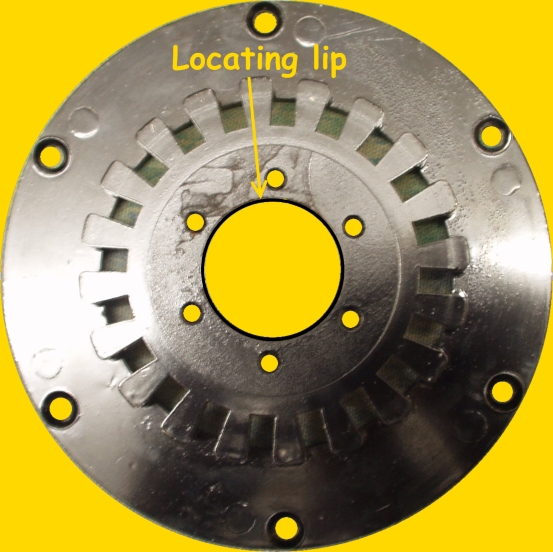

The centre of the disc usually locates over the raised lip in the centre of the disc mount/cooling fan assembly to ensure it is reasonably concentric with the axle:



If any of your drilled holes are so offset that they are preventing the disc from locating over this lip, then the holes may need to be filed slightly with a suitable round file to allow the disc to remain centred correctly whilst also allowing the retaining bolts to thread in easily without binding.

However, if the problem is due to a buckled disc, bicycle discs are thin enough that they can usually be trued to an acceptable level with the aid of some gentle persuasion from a wooden or rubber mallet to carefully reduce any high spots.

If you don't possess a wooden or rubber mallet, a metal hammer using a block of wood between the hammer and the disc to prevent damage to the disc surface can be used instead.

I find it is best to do this while the wheel is fitted to the bike so that you can use the rubbing sound of the outer disc pad (or a marker pen held against the caliper) to determine exactly where the individual high spots are on the surface of the disc.

Alan

« Last Edit: July 04, 2017, 11:08:41 PM by Bikemad »

Offline Kneedeep

  • Confirmed
  • Junior Member
  • **
  • Posts: 37
Re: MP5 controller cover with m5 bolts for the disc
« Reply #2 on: May 14, 2017, 03:30:58 AM »
I believe I bent the disc on the drill press. I cleaned up the disc it is a bit better but I would like a cover with the normal bolts if possible. the disc clears the center easily. Do all the motors have the large holes? or is it just certain motors? Not sure why they would change.
