Powerful & Reliable BLDC Motor Controllers
(Sine-wave or Square-wave Control in ONE controller - Programmable)


Wide Coverage of Power Range: 48Vdc-240Vdc | 400-2500 Amps | 1KW-40KW

Are you looking for a cutting-edge solution to enhance the performance and efficiency of your brushless DC (BLDC) motors? Look no further! We are proud to introduce our latest innovation – the High-Performance BLDC Sinewave Controller, a comprehensive motor control solution that will transform the way you manage your motor systems.

Our controller boasts an array of advanced features that make it the ideal choice for a wide range of applications, from electric vehicles to industrial automation. Here's a glimpse of what our revolutionary BLDC Sinewave Controller has to offer:

The EZkontrol BLDC motor controller (Field Oriented Control) series are finally here. The flagship “E” series is capable of delivering up to 40KWs of power at a maximum of 240V(dc) or 2000 Amps. You can always find suitable EZ controllers here to drive your brushless DC motors smoothly and efficiently, quick and easy! Modularized product design and effective production offers the best value for your money!

What lag?
Armed with powerful ARM 32-bit Cortex-M4 core processors, it will chew through vector control algorithms at lightning speed, delivering Real-Time torque, excitation, speed and power control as well as zero-delay monitoring functions via Bluetooth.

“Why won’t it spin?”
Gone are the days of a dedicated programming device, old USB cables and confused interfaces. The EZkontrol’s simple and intuitive automatic self-learning calibration of motor parameters allows you to get your motors up and running in no time…
… on your Mobile Phone!
… via built-in Bluetooth!
… on a floating App! (Download Android Version: EZ-Tune.apk v1.0.5 20231007 -- Code safety checked!)
… obtained via QR code!

There are hundreds of programmable control parameters for you to play around and fine tune your drive system to satisfy your expectations!

Sine-Wave or Square-Wave Control? You can simply choose Sine Wave control or Square Wave control in the same EZ controller by specifying the control mode via App.

Get firmware updates online the same EZ way! It doesn’t get any EZ-ier than this! It fully supports OTA firmware upgrade via your smart phones.

Field weakening capability:The EZ controllers allow the motor to operate beyond its rated speed range (up to 60% higher), enabling the motor to reach higher top speeds without sacrificing low-speed torque.

Regenerative Braking Capability: The EZ controllers can efficiently support regenerative braking, which is particularly useful in electric vehicle applications for fast stopping and energy saving.

Can it CAN?
EZkontrol supports multiple communication protocols and interfaces such as CAN-BUS, RS485, UART etc, so yes it CAN enabled. We are willing to provide free sample source codes for your quick-start CAN-BUS application development.

EZkontrol controllers are Liquid-Cooling Ready with 4 extruded through holes with standard water tap threads openings (pipe thread is 1/4 inch 55 degree, the outer diameter is 13.157mm, the inner diameter is 11.445mm, 19 teeth per inch, and the pitch is 1.337mm), in its flat bottom aluminum base for the best cooling effect. User can choose any 2 of these 4 holes to create water circulation via external cooling pump in case the liquid cooling is required in your drive system.

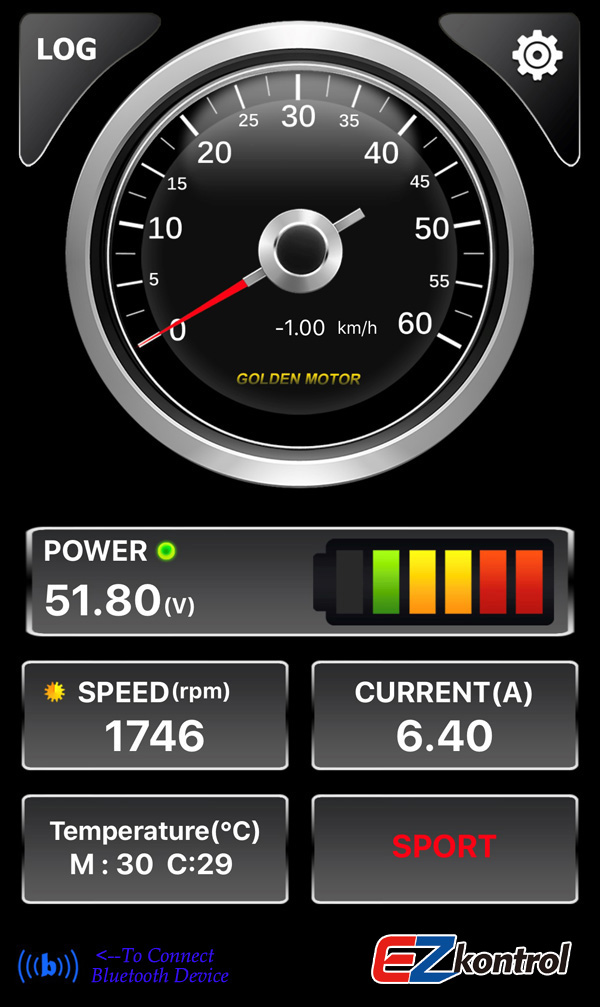

FREE downloadable professional looking Speedometer Apps for Android (Download EZkontrol.apk) and iOS (App Store search: EZkontrol), quick connecting your smartphone to EZ controller via blue-tooth interface (built-in your controller). The Apps also create very useful running log file to record motor and controller status, running data (date-time, voltage, current, rpm, motor temperature, ..., etc.) with date-time stamp at each time interval (user definable in seconds).



With the High-Performance BLDC Sinewave Controller, you can unlock the full potential of your motor systems and elevate your operations to new heights. We are confident that our state-of-the-art controller will exceed your expectations and become an integral part of your future projects.



Download EZkontrol User's Manual Here (.PDF format, 4.34MB)

1. Built-in bluetooth, Experience wireless convenience with Bluetooth connectivity, allowing you to monitor and adjust your motor's performance directly from your smartphone or tablet.
2. CAN-BUS Enabled: Enjoy seamless integration with your existing network, thanks to our controller's built-in CAN-BUS support, ensuring rapid and reliable communication between devices.
3. Self Motor Calibrating: Simplify the setup process with our intelligent self-calibrating feature, ensuring optimal performance without the need for complex manual adjustments.
4. Compatible with a variety of motor position sensors: Hall, photoelectric encoder, magnetic encoder and etc.
5. Compatible with a variety of motor temperature sensors, protect the motor from overheating damage.
6. Cruise speed and regenerative braking control
7. Five-level torque, speed, and power can be set separately.
8. Integrated DC contactor controls the circuit, and also other modes available.
9. Advanced and efficient software algorithms, guaranteed hardware circuits, excellent mechanical structure and thermal structure, ensure the stable and reliable quality.
10. PC material V-0 flame-retardant casing cover.
11. IP66 protection grade.


EZkontrol product list, you can always find suitable ones here!


Model No.

Rated Voltage
(Vdc)

Max. Voltage
(Vdc)

Max. Phase Current (A)

Rated Phase Current (A)

Max. Bus Current (A)

Rated Motor
Power (KW)

Price (USD)
Buy

EZ-A48400

48V

72V

400

160

200

2-4

$244

EZ-A48500

500

200

250

3-5

$286

EZ-B48800

800

320

400

5-8

$412

EZ-B481000

1000

400

500

6-10

$482

EZ-C481200

1200

480

600

7-12

$566

EZ-C481500

1500

600

750

9-14

$678

EZ-E482000

2000

800

1000

12-19

$747

EZ-E482500

2500

1000

1250

14-24

$890

EZ-A72400

72V

95V

400

160

200

3-6

$314

EZ-A72500

500

200

250

4-7

$384

EZ-B72800

800

320

400

7-12

$496

EZ-B721000

1000

400

500

9-14

$566

EZ-C721200

1200

480

600

10-17

$636

EZ-C721500

1500

600

750

13-22

$721

EZ-E722000

2000

800

1000

17-29

$877

EZ-E722500

2500

1000

1250

22-36

$1020

EZ-A96300

96V

120V

300

120

150

3-6

$412

EZ-A96400

400

160

200

5-8

$482

EZ-B96600

600

240

300

7-12

$580

EZ-B96800

800

320

400

9-15

$664

EZ-C96900

900

360

450

10-17

$690

EZ-C961200

1200

480

600

14-23

$851

EZ-E961500

1500

600

750

17-29

$1007

EZ-E962000

2000

800

1000

23-38

$1189

EZ-A120300

120V

145V

300

120

150

4-7

$468

EZ-B120600

600

240

300

9-14

$678

EZ-C120900

900

360

450

13-22

$799

EZ-D1201200

1200

480

600

17-29

$981

EZ-E1201500

1500

600

750

22-36

$1189

EZ-A144200

144V

190V

200

80

100

3-6

$510

EZ-B144400

400

160

200

7-12

$669

EZ-C144600

600

240

300

10-17

$929

EZ-D144800

800

320

400

14-23

$1120

EZ-E1441000

1000

400

500

17-29

$1332

EZ-A240100

240V

290V

100

40

50

3-5

$664

EZ-B240200

200

80

100

6-10

$929

EZ-C240300

300

120

150

9-14

$1176

EZ-D240400

400

160

200

12-19

$1449

EZ-E240500

500

200

250

14-24

$1722

*** For bulk orders, discounted prices are negotiable based on order quantities ***

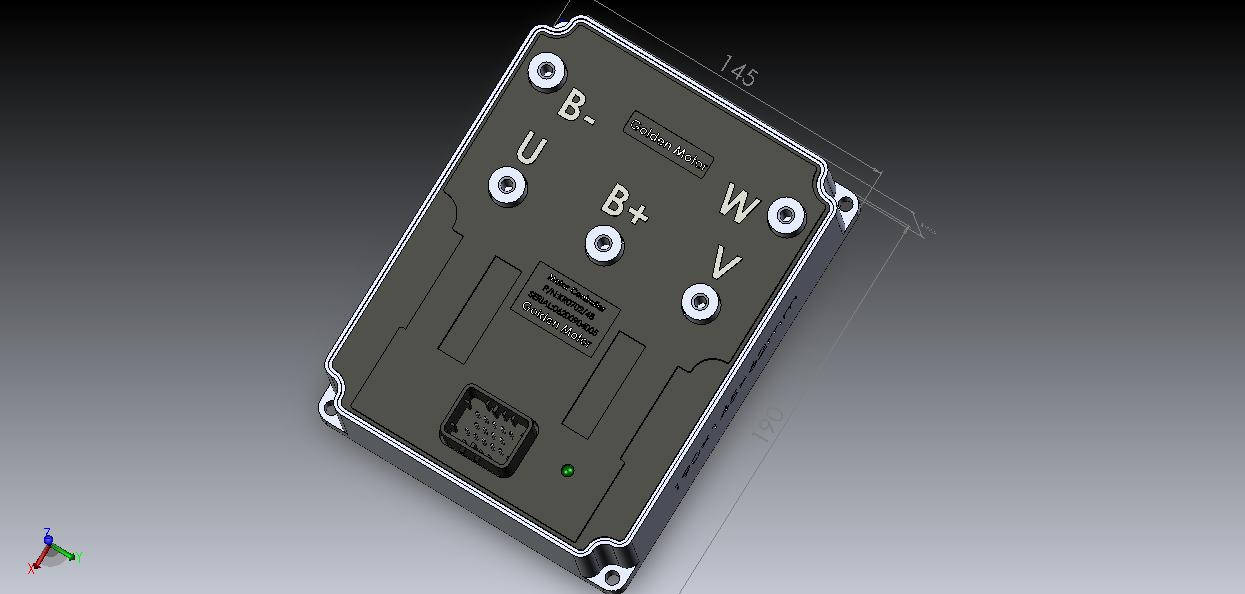

EZkontrol Controllers Dimensions

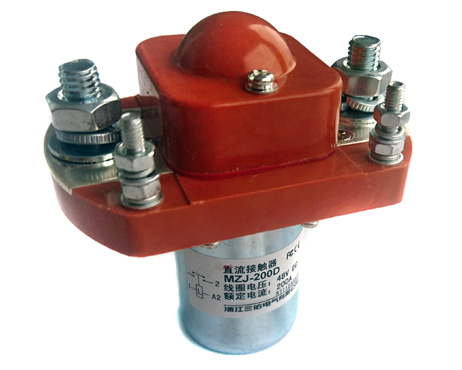

Product: DC Contactors

Output Voltage: 48V/72V/96V
Current: 200A, 400A

48V200A ($43)
72V200A ($47)
96V200A ($54)
48V400A ($54)
72V400A ($58)
96V400A ($65)
Model: FSC-010 -- Foot Throttle

Output Voltage: 0-5V
Material: casted aluminium
Weight:0.9Kgs
Features: Water resistent

Buy Now ($49)

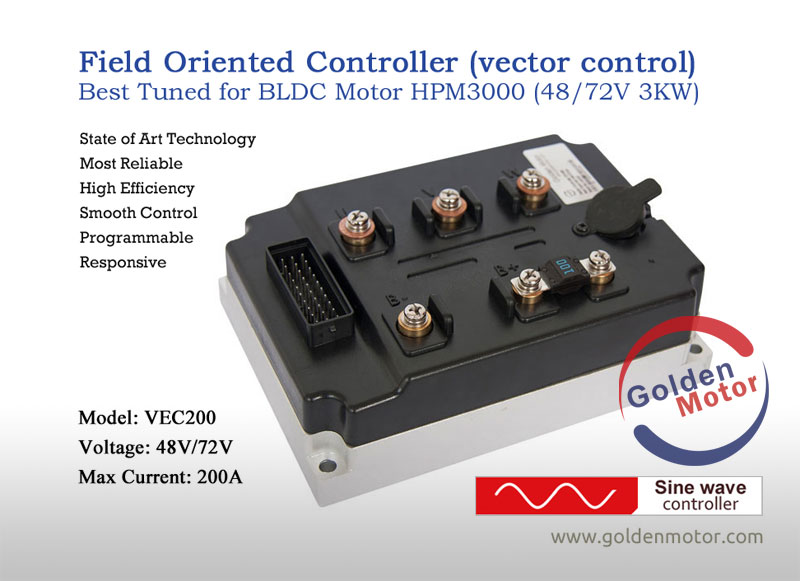

vector controller, FOC controller,Field Oriented Control,sine wave controller vector controller, FOC controller,Field Oriented Control,sine wave controller
vector controller, FOC controller,Field Oriented Control,sine wave controller

VEC Controller Guide(.pdf)     VEC Controller Wiring(.jpg)
VEC Controller Programming Software(.rar)     USB Driver in case needed(.rar)

Model Rated Voltage Rated Current Max Phase Current Dimensions L*W*H
Weight
Price Buy
VEC300-48 48V 120A 300A 190*180*50mm (2.5kg)

USD452

VEC300-72 72V 100A 300A 190*180*50mm (2.5kg)

USD452

VEC500-48 48V 200A 500A 200*190*58mm (3.2kg)

USD598

VEC500-72 72V 150A 500A 200*190*58mm (3.2kg)

USD598


Model: PI-400/VEC --
FOC Controller Programming Kit

Easy Installation for PC/laptop
Easy USB Port Connection

Buy Now ($60)



Brushless Dual-Mode Cruise Controller -- for Electric Bicycles, Scooters!

Magic!... It can drive your ebike even with failed motor hall sensors, throttle, breaker, or all of them failed together!
It acts as sensorless controller when your motor hall effect sensors fail!



Cruise Controller User Guide (.pdf)     Dimensional Drawing (.pdf)    Wiring Diagram (.pdf)    (.jpg)    (3D View)
-- Download eDrawing to view (12.6Mb)

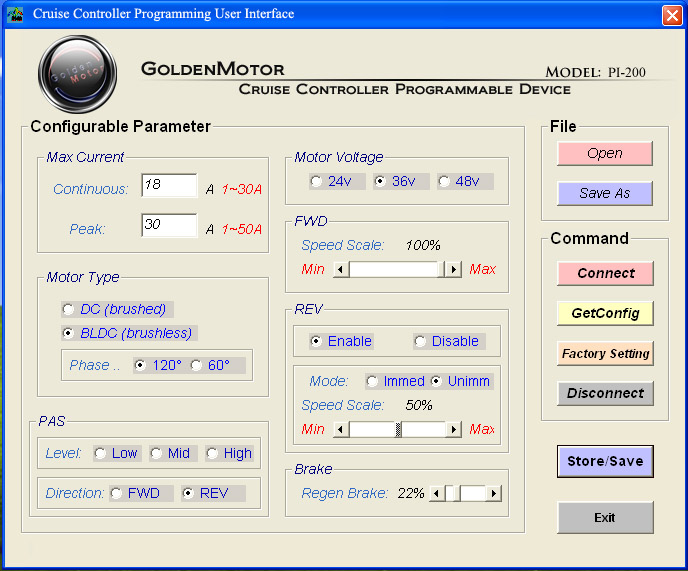

Click to see programming user interface screen
Download Parameter Setting Software for PC Windows XP/Win7(PD_282_speed.rar, 1.2MB)


Special Features:
  • Cruise Speed Control -- Sensor/Sensorless Dual-Mode Control
  • Programmable via PC to setup motor control parameters
  • Motor hall sensor failure redundency (Automatically switch to sensorless control mode)
  • Anti-theft alarm and wheel-locking by detection of vibration
  • True regenerative braking (only effective when you squeeze the hand brake)
  • Other failures redundency (Work with failed throttle and power breaker)
  • Work with multiple voltages: 24V, 36V and 48V with the same controller
  • Report failure components by beeps
  • Motor phase self detection and calibration
  • Support Forward and Reverse Control
  • Excessive Current Protection
  • Low Voltage Protection
  • High Reliability


  • Buy Sample (wholesale prices negotiable)

    BAC-0281P
    36V/50A

    $59/set
    BAC-0282P
    48V/50A

    $59/set
    BAC-0501
    48V/100A

    $95/set
    BAC-0283P
    24V/50A

    $59/set
    PI-0200E
    external

    $33/set
    PI-300I
    internal

    $33/set
    ...Credit cards via PayPal...
    Please provide your contact phone number for shipping company use!

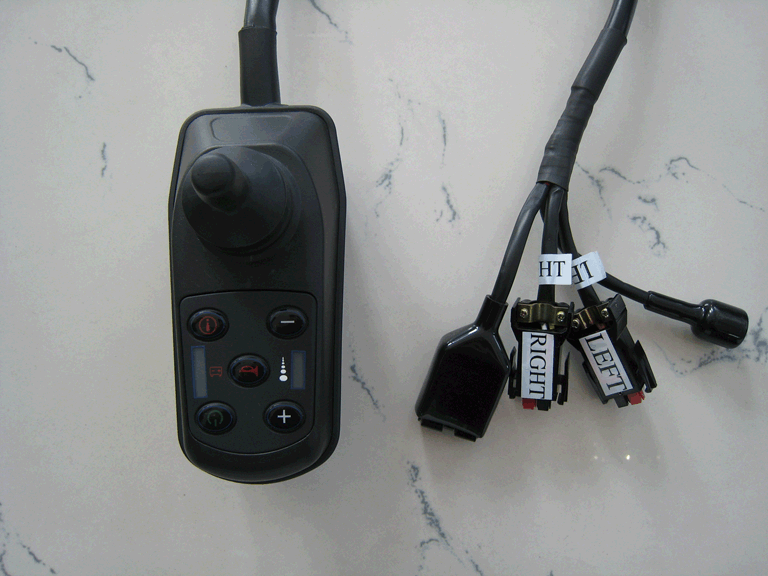

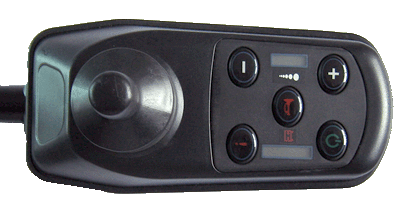

    Wheelchair Joystick Controller -- IM-50A

    Click Here to View Large Photo


    USD188 each (24V)
    ..........

    This innovative, stylish wheelchair joystick controller allows you to move the e-chair in any direction smoothly and instantly with its user friendly control panel. It drives dual wheelchair motor intelligently by programmed microchip. You can really feel your fingers empowered with this state of art technology!
  • All-in-One, programmable Controller
  • 24Vdc/36Vdc, Maximum 50Amps
  • 5 Speed Ranges
  • Regenerative Braking
  • Parking Brake Open Circuit Detection
  • Parking Brake Manual Release Microswitch Detection
  • Including all connectors to motors and charger
  • Exchangeable to other common joystick controllers
  • Online User Guide (PDF)

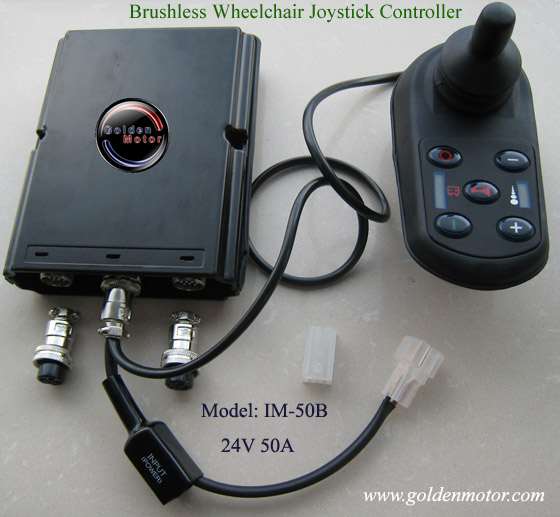

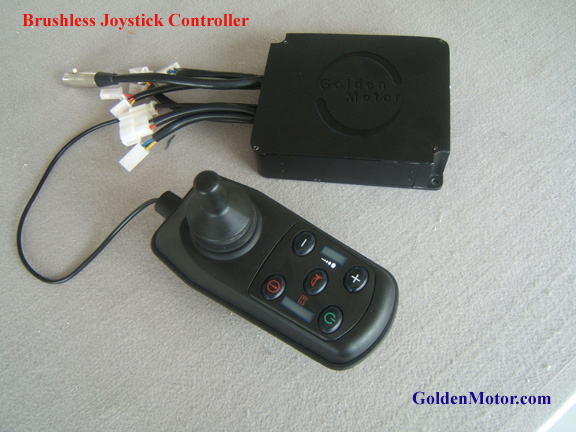

  • Brushless Joystick Controller (for dual brushless motors drive) -- IM-50B


    USD255 each (24V)

    This unique joystick controller drives dual BRUSHLESS motors intelligently by programmed microchip. This extends your wheelchair life up to 10 times longer than current brushed motor powered wheelchairs in the market.
  • All-in-One, programmable Controller
  • 24Vdc, Maximum 50Amps
  • 5 Speed Settings
  • Regenerative Braking
  • Parking Brake Open Circuit Detection
  • Parking Brake Manual Release Microswitch Detection
  • Including all connectors to motors and charger
