Unleashing Power: High Torque Axial Flux Drivetrains

Good for High Thrust Direct Drive Applications without Gearbox

We have been leading manufacturer of general-purpose brushless dc (BLDC) motors and Permanent Magnet Synchronous Motors (PMSM) since 2006, with power range from 200W to 30KW, and the voltage range from 24V to 144V DC. It has been widely used for many applications, eg., auto industry, electric motorcycles, scooters, electric cars, forklifts, go-kart, high thrust drones for carrying goods, electric boats etc. It has better performances than other traditional dc motors.

Our BLDC/PMSM motors are specially designed with our own patented axial flux technologies. The main difference between the PMSM and BLDC is regarding its control mechanism. BLDC motor uses the Trapezoidal control while PMSM motor uses the Sinusoidal control. The best thing is that our EZ controllers support both Trapezoidal control and Sinusoidal control in a single controller. User can choose/update the control firmware they like via free App provided (downloadable on controller page) over the air (OTA). Essentially, both BLDC and PMSM have distinct advantages and disadvantages. The optimal choice between these two motor types depends on the specific application and the unique features of your applications. Golden Motor is ready to provide either solutions you want.

HyperTorque Motor - Peak power 160Nm/28KW without gear, up to 4300rpm, 18kg only!
HyperTorque-product specifications
HTM11KW-160Nm (72V) Performance Report

What are advantages of axial flux motor?

Axial flux motors have several advantages over traditional radial flux motors. Here are key advantages of axial flux motors:

High torque density: Axial flux motors have a higher torque density than radial flux motors, which means they can deliver more torque per unit of volume. This makes them ideal for applications like electric motorcycles, electric go-kart, electric boats, high thrust drones for carrying goods.
High efficiency: Axial flux motors have a high efficiency, which means they can convert a higher percentage of electrical energy into mechanical energy. This results in lower energy losses and longer battery life in electric vehicles.
Field weakening capability:The motor is designed to handle the high-speed operation, allows the motor to operate at speeds 60% higher than its base (or rated) speed without requiring a higher input voltage. The field weakening control offers the advantage of higher speed operation and greater flexibility in applications with variable speed requirements.
Compact size and low weight: Axial flux motors are more compact and lightweight than radial flux motors of similar power output. This makes them suitable for applications where weight and size are critical, such as drones and robots.
Regenerative Braking Capability: Like other BLDC/PMSM motors, axial flux motors can efficiently support regenerative braking, which is particularly useful in electric vehicle applications.
Reduced Noise and Vibration: The design of axial flux motors often results in quieter operation and less vibration compared to traditional radial motors, which is a significant advantage in noise-sensitive applications.
Less Cogging Torque: The unique design of axial flux motors can result in lower cogging torque. This is beneficial in applications where smooth operation and precise control are necessary.

Product Features:

• Long working life (>20,000 hours)
• Low noise, high torque
• Excellent performance characteristics
• High efficiency (>90%)
• High reliability

• Rated voltage : 24-144 VDC
• Rated power : 200W-30,000W
• Rated speed: 2000-6000 rpm
• Cooling Options: Fan or Liquid
• Temperature Sensor Installed: KTY84-130 (.PDF)
• Stepless speed control, dual-direction


Electrified Quad with 72V/11KW HyperTorque Motor, USA

Video of e-motorcycle with 20KW motor

CE Certified BLDC Motors by EMTEK!

HPM1.5KW (1.5KW) CE Certificate   HPM03KW (3KW) CE Certificate
HPM05KW (5KW) CE Certificate   HPM10KW (10KW) CE Certificate
HPM20KW (20KW) CE Certificate



Motor and Controller Wiring Diagrams (.jpg format):

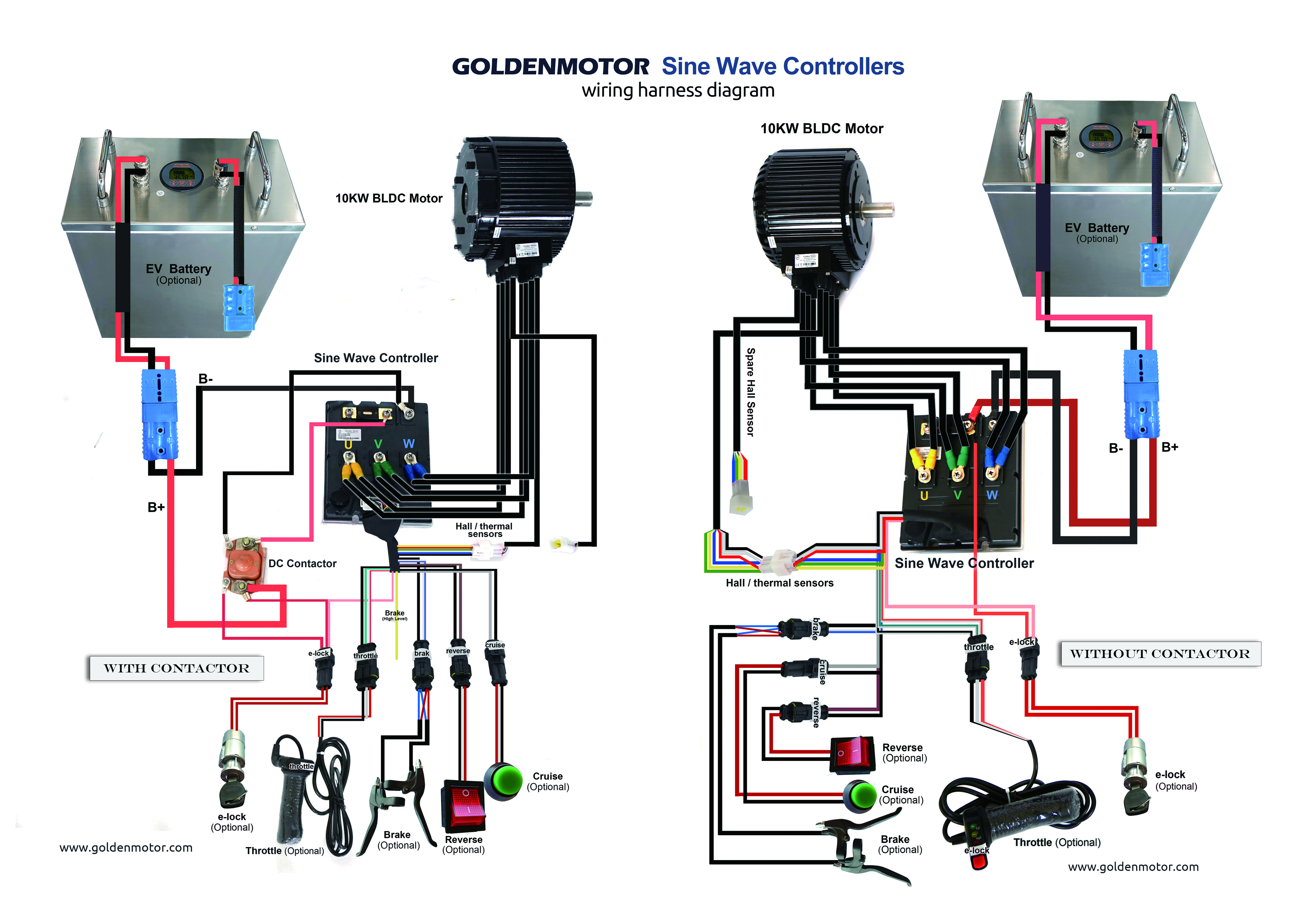

HPM3000/HPM5000 Motor Wiring   HPM3000/HPM5000 Motor+Controller Wiring   HPM10KW Motor Wiring   HPM10KW Motor+Controller Wiring   HPM20KW Motor Wiring   HPM20KW Motor+Controller Wiring

3D Motor Drawings( .STEP format): Please use Google Chrome to download if IE does not work.
HPM3000B Fan-Cooling   HPM3000L Liquid-Cooling   HPM5000B Fan-Cooling   HPM5000L Liquid-Cooling   HPM10KW Fan-Cooling   HPM10KW Liquid-Cooling   HPM20KW Liquid-Cooling

Motor Drawings(.PDF format):
HPM3000B Fan-Cooling   HPM3000L Liquid-Cooling   HPM5000B Fan-Cooling   HPM5000L Liquid-Cooling
HPM10KW Fan-Cooling   HPM10KW Liquid-Cooling   HPM20KW Liquid-Cooling



3KW BLDC/PMSM Motor
3KW Fan Cooling		3KW Liquid Cooling
Buy Now		Buy Now
48V 3KW Fan Cooling $288	72V 3KW Fan Cooling $288	48V 3KW Liquid Cooling $338	72V 3KW Liquid Cooling $338
Detailed parameters		Application Sample
Model: HPM3000B -- High Power BLDC/PMSM Motor 1. Voltages: 48/72V 2. Rated power: 2-3KW 3. Peak power: 6KW 4. Speed: 3000-5000rpm 5. Rated torque: 10 Nm 6. Peak torque: 25 Nm 7. Efficiency: >90% 8. Dimensions: 18cm dia. 12.5cm height 9. Weight: 7.3kg(air),8kg(water) 10. Cooling: air or liquid cooling HPM3000 (3KW) Motor Performance Data (48V) (.PDF) HPM3000 (3KW) Motor Performance Curve (48V) (.PDF) HPM3000 (3KW) Motor Performance Data (72V) (.PDF) HPM3000 (3KW) Motor Performance Curve (72V) (.PDF)

5KW BLDC/PMSM Motor
5KW Fan Cooling			5KW Liquid Cooling
Buy Now			Buy Now
48V 5KW Fan Cooling $446	72V 5KW Fan Cooling $446	96V 5KW Fan Cooling $446	48V 5KW Liquid Cooling $496	72V 5KW Liquid Cooling $496	96V 5KW Liquid Cooling $496
Detailed parameters			Application Sample
Model: HPM5000B -- High Power BLDC/PMSM Motor 1. Voltage:48V/72V/96V/120V 2. Rated Power:3KW-7.5KW 3. Efficeincy: 91% 4. Peak Torque: 40Nm 5. Phase Resistance (Milliohm): 6.2/48V; 12.0/72V; 36.0/120V 6. Phase Induction(100KHZ): 68uH/48V; 154uH/72V; 504uH/120v 7. Speed: 2000-6000rpm (customizable) 8. Weight:11Kg(air),11.35kg(water); 9. Casing: Aluminium 10. Length (height): 126mm Diameter: 206mm 11. Keyway size: 5mm(W) x 43mm(L) x 19mm(D:22.3mm) 12. Features: Compact design,Water resistent, Stainless Steel Shaft, Self Cooling Fan 13. Applications: Electric car, electric motorcycle, electric tricycle, electric golf carts, fork lift, electric boat, etc. Drive Motor Kit Typical Setup(.jpg)  Drawing(.pdf)3D View Curve (96V)   Data (96V)   Curve (72V)   Data (72V)   Curve (48V)   Data (48V)

10KW BLDC/PMSM Motor
10KW Fan Cooling			10KW Liquid Cooling
Buy Now			Buy Now
48V 10KW Fan Cooling $690	72V 10KW Fan Cooling $690	96V 10KW Fan Cooling $690	48V 10KW Liquid Cooling $715	72V 10KW Liquid Cooling $715	96V 10KW Liquid Cooling $715
Detailed parameters			Application Sample

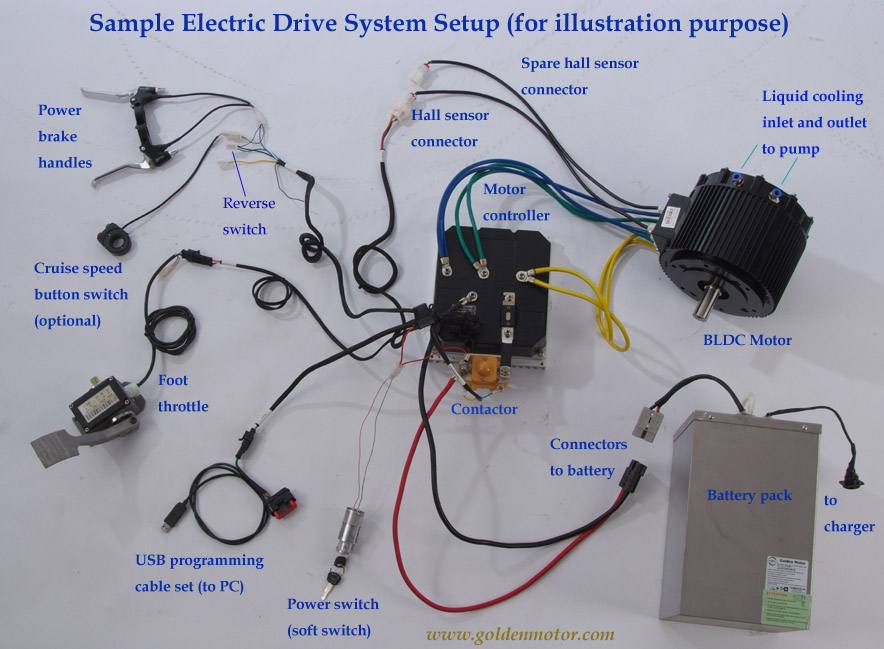

Model: HPM-10KW -- High Power BLDC/PMSM Motor 1. Voltage:48V/72V/96V/120V 2. Rated Power:8KW-20KW 3. Efficeincy: 91% 4. Peak Torque: 80Nm 5. Phase Resistance (Milliohm): 3.1/48V; 6.0/72V; 18.0/120V 6. Phase Induction(100KHZ): 34uH/48V; 77uH/72V; 252uH/120v 7. Speed: 2000-6000rpm (customizable) 8. Weight:17Kg(air),17.7kg(water); 9. Casing: Aluminium 10. Length (height): 170mm Diameter: 206mm 11. Keyway size: 6.4mm(W) x 45mm(L) x 21.7mm(D:25.4mm) Curve (96V)   Data (96V)   Curve (72V)   Data (72V)   Curve (48V)   Data (48V) Drive Motor Kit Typical Setup(.jpg)

20KW BLDC/PMSM Motor
20KW Liquid Cooling	Buy Now
	120V 20KW Liquid Cooling $1690	72V 20KW Liquid Cooling $1690	96V 20KW Liquid Cooling $1690

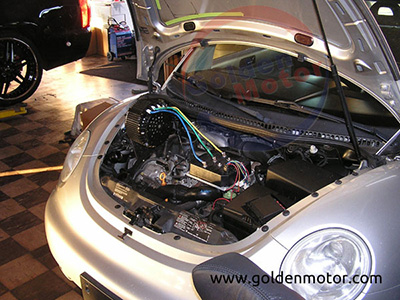

Detailed parameters	Application Sample

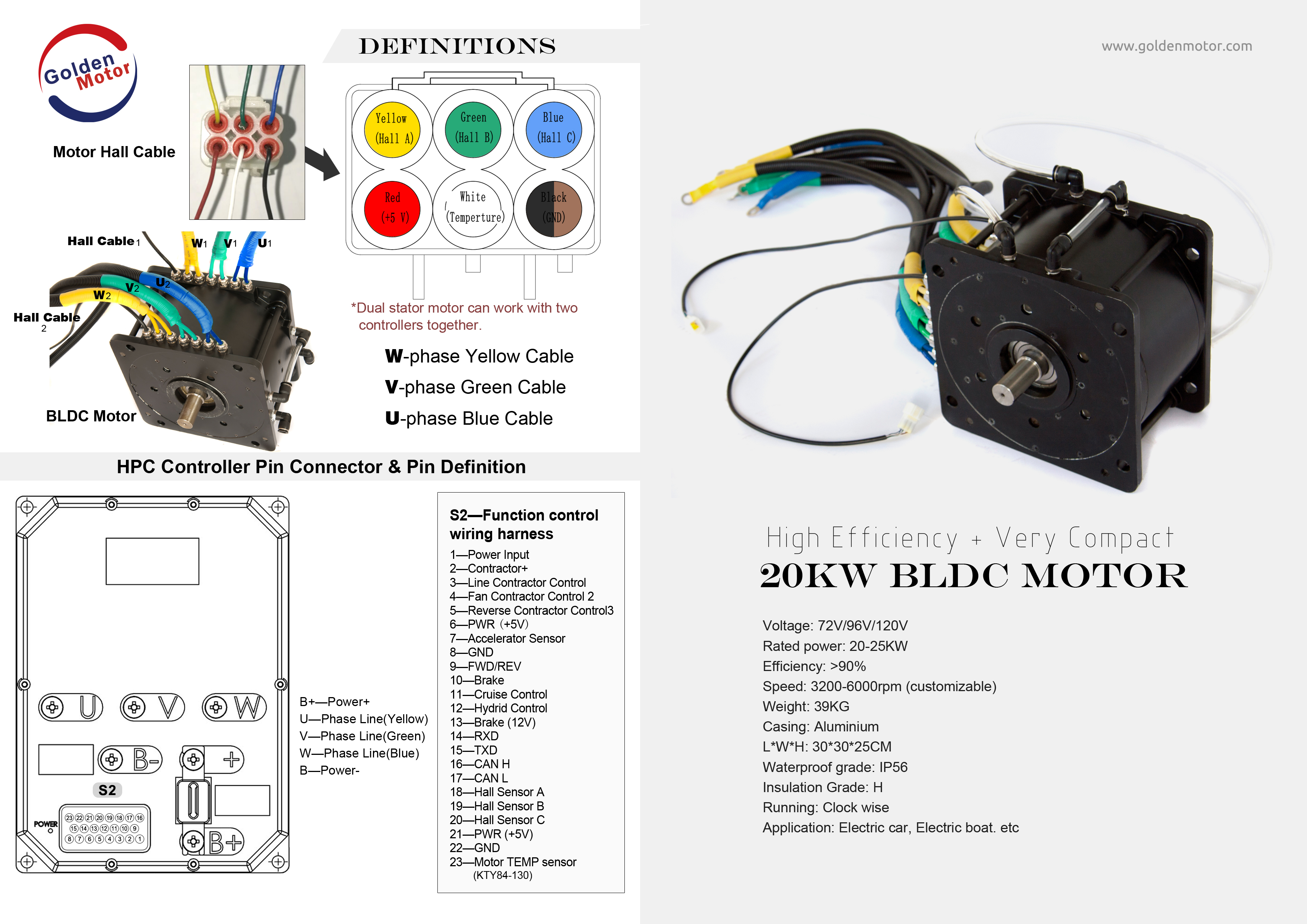

Model: HPM-20KW -- High Power BLDC/PMSM Motor Voltage:72V/96V/120V 1. Voltages: 72V-120Vdc 2. Rated power: 20-25KW 3. Peak power: 50KW 4. Speed: 3200-6000rpm 5. Rated torque: 80 Nm 6. Peak torque: 160 Nm 7. Efficiency: >90% 8. Dimensions:283mm(W) x 345mm(L) x 247mm(D) 9. Weight: 39kg(20KW),27kg(15KW) 10: Cooling: liquid cooling Drive Motor Kit Typical Setup(.jpg)   Drawing(.PDF)   3D Drawing(.STEP) Curve (96V)   Data (120V)   Curve (96V)   Data (96V)   Curve (72V)   Data (72V)



1500W BLDC/PMSM Motor
BLDC-108	Buy Now
	48V 1500W $168

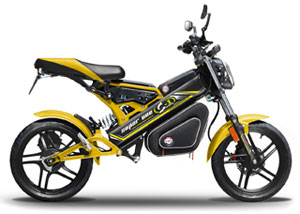

Detailed parameters	Application Sample

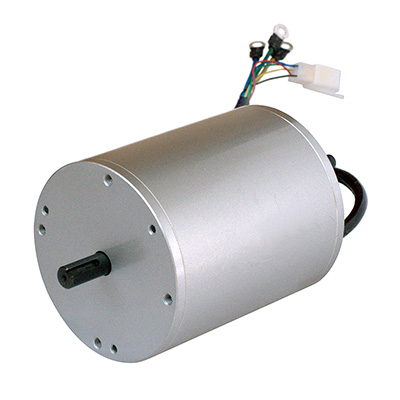

Model: BLDC-108 1. Voltages: 48Vdc 2. Rated power: 1.5KW 3. Peak power: 3.0KW 4. Speed: 3200-5000rpm 5. Rated torque: 4 Nm 6. Peak torque: 8 Nm 7. Efficiency: >85% 8. Dimensions: 11x10cm 9. Weight: 4.5kgs Drawing(.PDF) 3D Drawing(.STEP) Performance Report (.xls)
2000W BLDC Motor Controller
	Cruise/Regen Controller
	Buy Now
	BAC-0501 48V/100A $95/set
Detailed parameters
Model: BAC-0501 1. Cruise/Regen Controller, Programmable! 2. Multi-Voltage of 24V/36V/48V/60V(MAX) 3. Continuous current: 50A 4. Max current: 100A 5. Rated output power:2000W 6. Weight: 1.5kgs/unit 7. PC Programmable 8. Regen Braking Cruise Controller User Guide (.pdf) Wiring Diagram (.pdf)    (.jpg)    (3D View) -- Download eDrawing to view (12.6Mb)

Electric Tricycle Motors

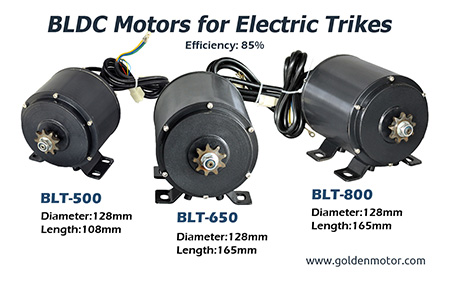

500W/650W/800W BLDC Motor	Buy Now
	BLT-500 48V500W $118	BLT-650 48V650W $126	BLT-800 48V800W $138

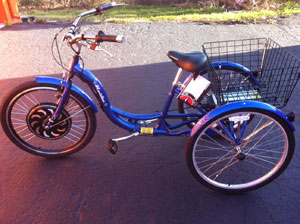

Detailed parameters	Application Sample

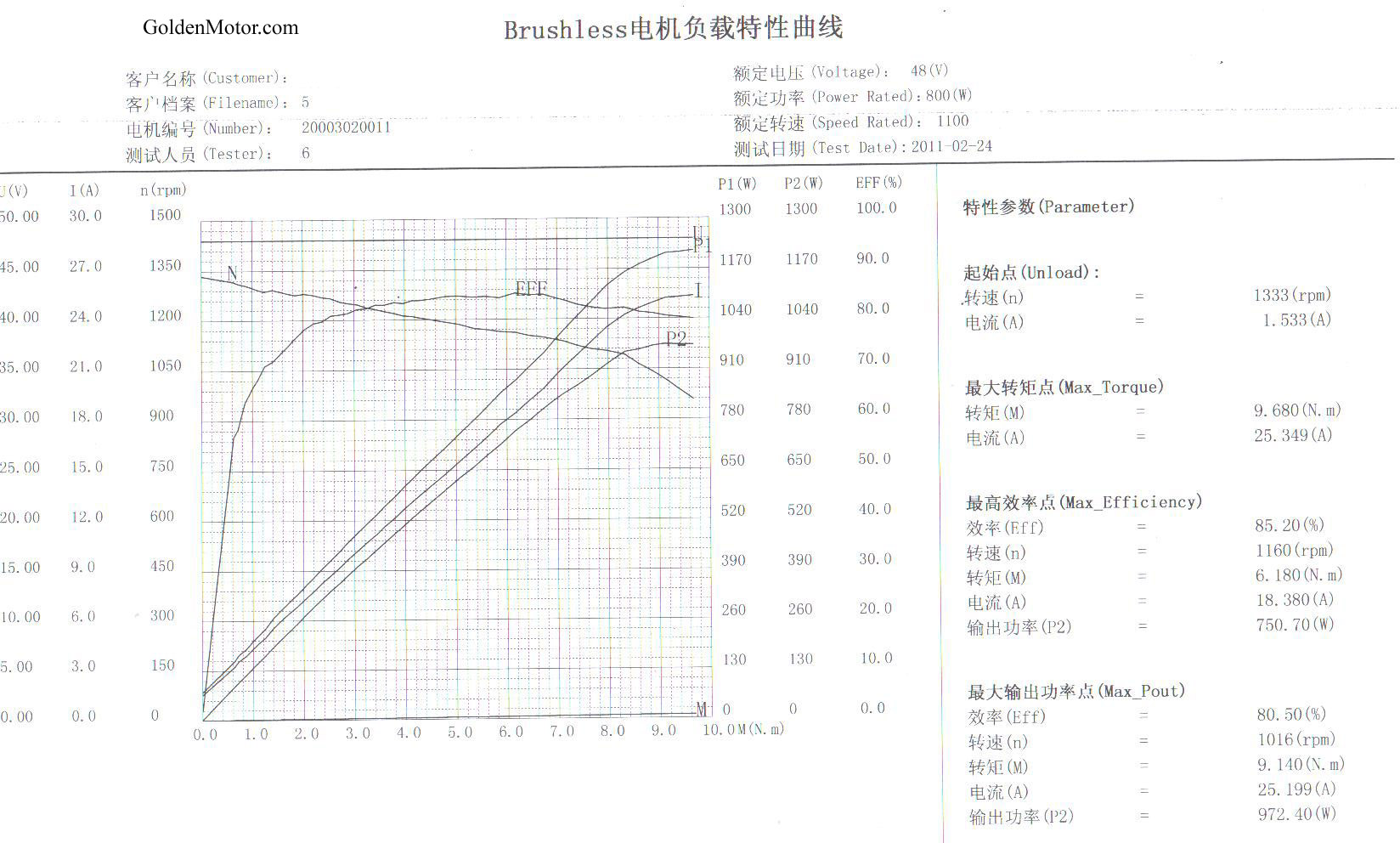

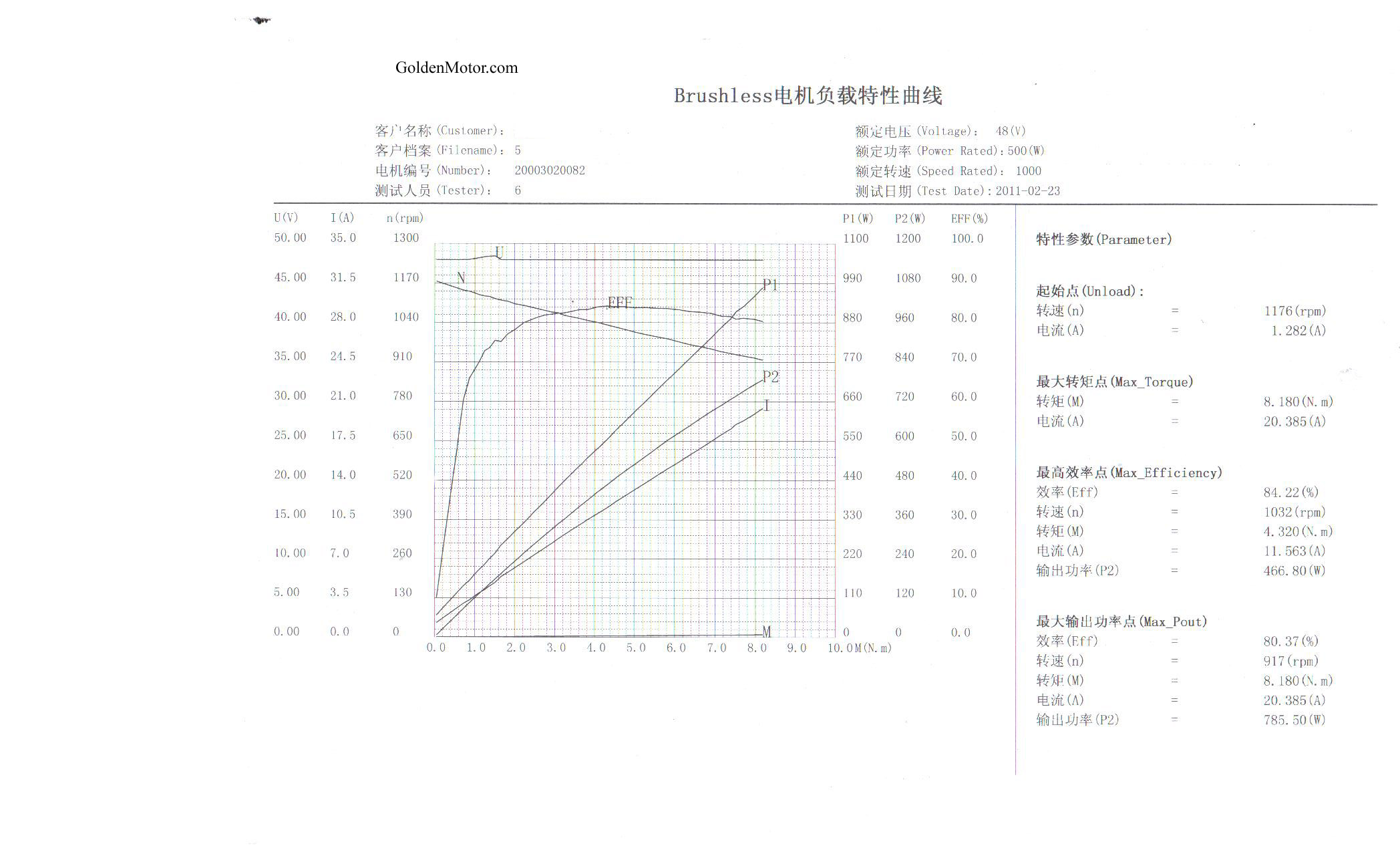

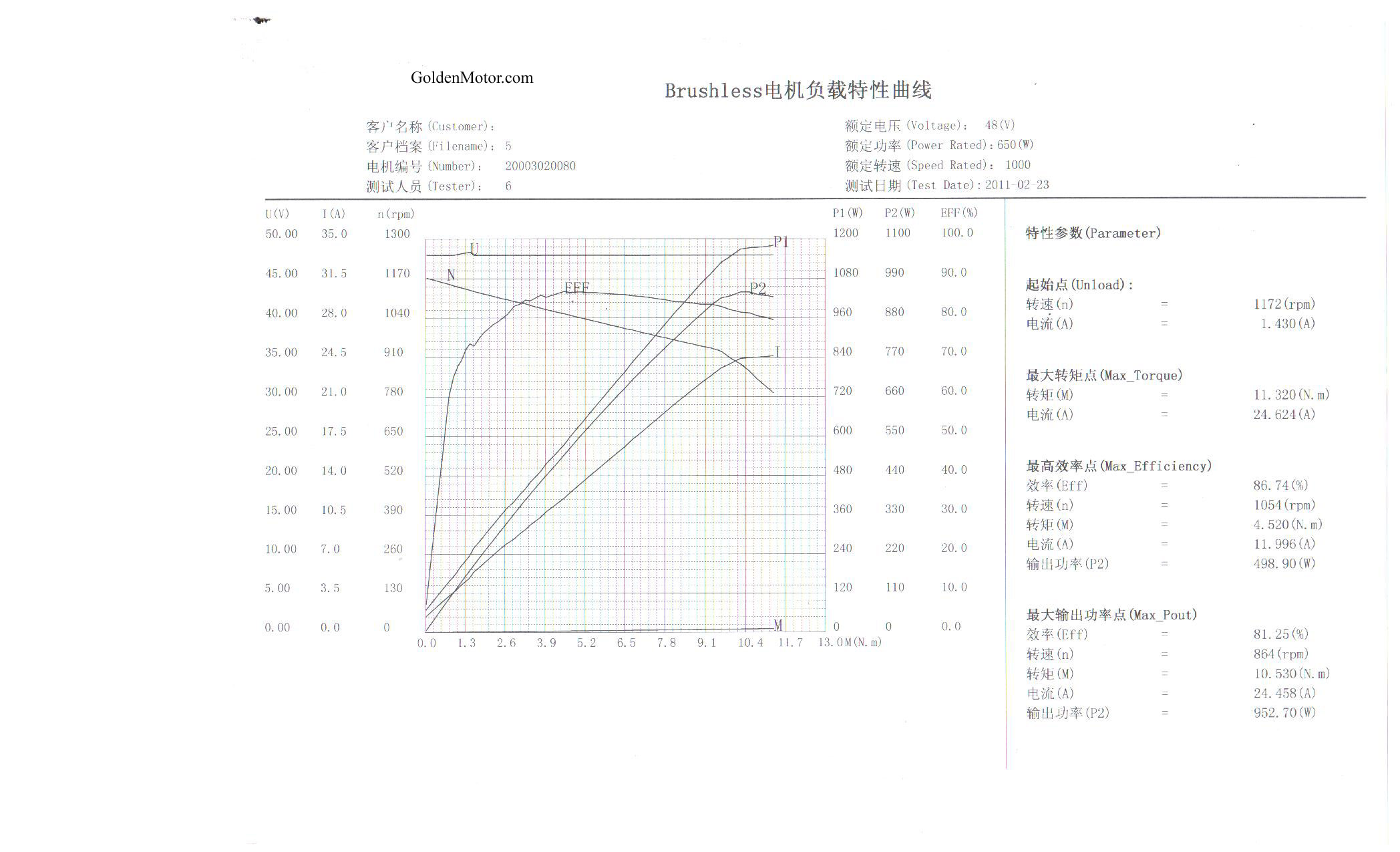

Model:500W/650W/800W--BLDC Motor 1. Medium speed high torque brushless motor 2. High energy efficiency 3. Light weight 4. Voltage:36V-60V 5. Power Rate:500W-1000W 800W Motor Performance Curve 650W Motor Performance Curve 500W Motor Performance Curve
200-1000W BLDC Motor Controller
	Cruise/Regen Controller
	Buy Now
	BAC-0281P 36V/50A $59/set	BAC-0282P 48V/50A $59/set	BAC-0283P 24V/50A $59/set
Detailed parameters
Model:BAC-281P 1. Cruise Speed Controller-New Generation Ebike Controller 2. Multi-Voltage of 24V/36V/48V/60V(MAX) 3. Continuous current: 25A 4. Max current: 50A 5. Rated output power:200-1000W 6. Weight: 0.5kgs/unit 7. Programmable via PC USB port with optional interface Cruise Controller User Guide (.pdf) Wiring Diagram (.pdf)    (.jpg)    (3D View) -- Download eDrawing to view (12.6Mb)

Accessories
Model	Detailed parameters	Buy Now

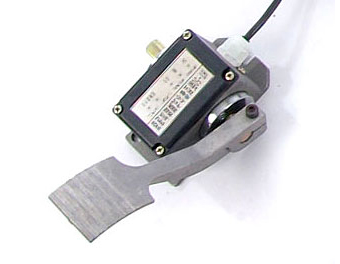

	Model: FSC-010 -- Foot Throttle 1. Output Voltage: 0-5V 2. Material: casted aluminium 3. Weight:0.9Kgs 4. Features: Water resistent	$49

Special Features:

Cruise Speed Controller

Programmable via PC to setup motor control parameters

Motor hall sensor failure redundency (Automatically switch to sensorless control)

Anti-theft alarm and wheel-locking by detection of vibration

True regenerative braking (only effective when you squeeze the hand brake)

Other failures redundency (Work with failed throttle and power breaker)

Work with multiple voltages: 24V, 36V and 48V with the same controller

Report failure components by beeps

Motor phase self detection and calibration

Support Forward and Reverse Control

Excessive Current Protection

Low Voltage Protection

High Reliability
