AC/DC Motors for Air-conditioner and Fan Use

Products

Pictures (Click Each Pic. for Drawing)

Specifications



AC Motor

Price: $15.20 Click to View Drawing


Models: YDK6(/16/28)A1
Input Voltage: 220-240 VAC
Freq.: 50 Hz
Output Power: 6/16/28 W
Speed: 1100/1150/1250 RPM
Current: 0.10/0.14/0.28 A
Noise: <35 dB(A)
Insulation: Class E
Cap.: 1.0/450 uF/V



AC Motor

Price: $15.20 Click to View Drawing


Models: YDK8(/20/28)A2
Input Voltage: 220-240 VAC
Freq.: 50 Hz
Output Power: 8/20/28 W
Speed: 1200/1200/1250 RPM
Current: 0.12/0.20/0.28 A
Noise: <35 dB(A)
Insulation: Class E
Cap.: 1.0/450 uF/V



AC Motor

Price: $19.80 Click to View Drawing


Models: YDK25(/30/40)C3
Input Voltage: 220-240 VAC
Freq.: 50 Hz
Output Power: 25/30/40 W
Speed: 800/800/850 RPM
Current: 0.30/0.40/0.45 A
Noise: <37 dB(A)
Insulation: Class E
Cap.: 2.5/450 uF/V



AC Motor

Price: $23.00 Click to View Drawing


Models: YDK16(/25/35/50)s-4
Input Voltage: 220-240 VAC
Freq.: 50 Hz
Output Power: 16/25/35/50 W
Speed: 1350 RPM
Current: 0.20/0.23/0.30/0.38 A
Noise: <35 dB(A)
Insulation: Class B
Cap.: 2.0/450 uF/V



AC Motor

Price: $19.80 Click to View Drawing


Models: YDK26(/40/50)F3
Input Voltage: 220-240 VAC
Freq.: 50 Hz
Output Power: 26/40/50 W
Speed: 760/800/800 RPM
Current: 0.30/0.45/0.50 A
Noise: <37 dB(A)
Insulation: Class E
Cap.: 3.0/450 uF/V



AC Motor

Price: $23.00 Click to View Drawing


Models: YDK35-8B
Input Voltage: 220-240 VAC
Freq.: 50 Hz
Output Power: 35 W
Speed: 350 RPM
Current: 0.56 A
Noise: <38 dB(A)
Insulation: Class E
Cap.: 3.5/450 uF/V



AC Motor

Price: $29.00 Click to View Drawing


Models: YDK120-8
Input Voltage: 220-240 VAC
Freq.: 50 Hz
Output Power: 120 W
Speed: 350 RPM
Current: 1.20 A
Noise: <40 dB(A)
Insulation: Class E
Cap.: 3.5/450 uF/V



AC Motor

Price: $27.00 Click to View Drawing


Models: YDK60/50E
Input Voltage: 220-240 VAC
Freq.: 50 Hz
Output Power: 50/60 W
Speed: 880/780 RPM
Current: 0.6 A
Noise: <40 dB(A)
Insulation: Class E
Cap.: 3.0/450 uF/V



AC Motor

Price: $27.00 Click to View Drawing


Models: YDK65C
Input Voltage: 220-240 VAC
Freq.: 50 Hz
Output Power: 65 W
Speed: 750 RPM
Current: 0.7 A
Noise: <40 dB(A)
Insulation: Class E
Cap.: 3.5/450 uF/V



AC Motor

Price: $24.00 Click to View Drawing


Models: YSK12(/16/20)-4
Input Voltage: 220-240 VAC
Freq.: 50 Hz
Output Power: 12/16/20 W
Speed: 700 RPM
Current: 0.15/0.20/0.25 A
Noise: <37 dB(A)
Insulation: Class E
Cap.: 2.0/450 uF/V



AC Motor

Price: $23.00 Click to View Drawing


Models: YSK25-4
Input Voltage: 220-240 VAC
Freq.: 50 Hz
Output Power: 25 W
Speed: 750 RPM
Current: 0.47 A
Noise: <40 dB(A)
Insulation: Class E
Cap.: 2.5/450 uF/V



AC Motor

Price: $24.00 Click to View Drawing


Models: YSK50-4N4
Input Voltage: 220-240 VAC
Freq.: 50 Hz
Output Power: 50 W
Speed: 710 RPM
Current: 0.65 A
Noise: <37 dB(A)
Insulation: Class E
Cap.: 2.0/450 uF/V



AC Motor

Price: $38.00 Click to View Drawing


Models: YDK125(/180/250)-6
Input Voltage: 220-240 VAC
Freq.: 60 Hz
Output Power: 125/180/255 W
Speed: 600/700/700 RPM
Current: 1.1/1.6/2.1 A
Noise: <47 dB(A)
Insulation: Class E
Cap.: 6.0/450 12.0/450 uF/V



AC Motor

Price: $53.00--$83.00 Click to View Drawing


Models: YSK320(/400/500/600)-6
Input Voltage: 220-240 VAC
Freq.: 60 Hz
Output Power: 320/400/500/600 W
Speed: 720/600/600/720 RPM
Current: 0.15/0.20/0.25 A
Noise: <50 dB(A)
Insulation: Class B
Cap.: 6.0(/15.0/20.0/15.0)/450 uF/V

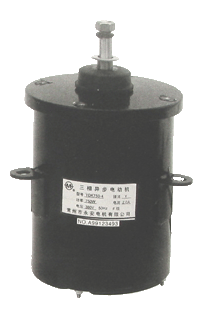

AC Motor

Price: $53.00--$105.00 Click to View Drawing


Models: YDK750 Series
Input Voltage: 380 VAC
Freq.: 50 Hz
Output Power: 250/300/550/750/950 W
Speed: 450/1400/700//910/1350 RPM
Current: 2.0-4.0 A
Noise: <50 dB(A)
Insulation: Class B



AC Motor

Price: $18.00 Click to View Drawing


Models: YCK30-4
Input Voltage: 220-240 VAC
Freq.: 50 Hz
Output Power: 30 W
Speed: 850 RPM
Current: 0.44 A
Noise: <37 dB(A)
Insulation: Class E
Cap.: 3.0/450 uF/V



DC Motor

Price: $11.5 Click to View Drawing


Models: 62WS001
Input Voltage: 30 VDC
Output Power: 20W
Speed: 1200 RPM
Current: 0.9 A
Noise: <32 dB(A)
Insulation: Class B



DC Motor

Price: $28.00 Click to View Drawing


Models: 93WS003
Input Voltage: 45 VDC
Output Power: 30W
Speed: 1600 RPM
Current: 0.9 A
Noise: <32 dB(A)
Insulation: Class B



DC Motor

Price: $25.00 Click to View Drawing


Models: 83WS002
Input Voltage: 24 VDC
Output Power: 12W
Speed: 1300 RPM
Current: 0.7 A
Noise: <30 dB(A)
Insulation: Class B



DC Motor

Price: $27.00 Click to View Drawing


Models: 94WS002
Input Voltage: 300 VDC
Output Power: 40W
Speed: 950 RPM
Current: 0.18 A
Noise: <34 dB(A)
Insulation: Class B



DC Motor

Price: $35.00 Click to View Drawing


Models: 124WS001
Input Voltage: 300 VDC
Output Power: 40W
Speed: 500 RPM
Current: 0.25 A
Noise: <34 dB(A)
Insulation: Class B



DC Motor

Price: $13.60 Click to View Drawing


Models: 40WS002
Input Voltage: 9-18 VDC
Output Power: 3W
Speed: 1350 RPM
Current: 0.25 A
Noise: <29 dB(A)
Insulation: Class B


*All prices quoted in USD currency as F.O.B Shanghai, China
