Longer Miles...Light Weight...Neat Design
Cuts Battery Spending and Weight by Half -- GoldenMotor Power Wheelchairs

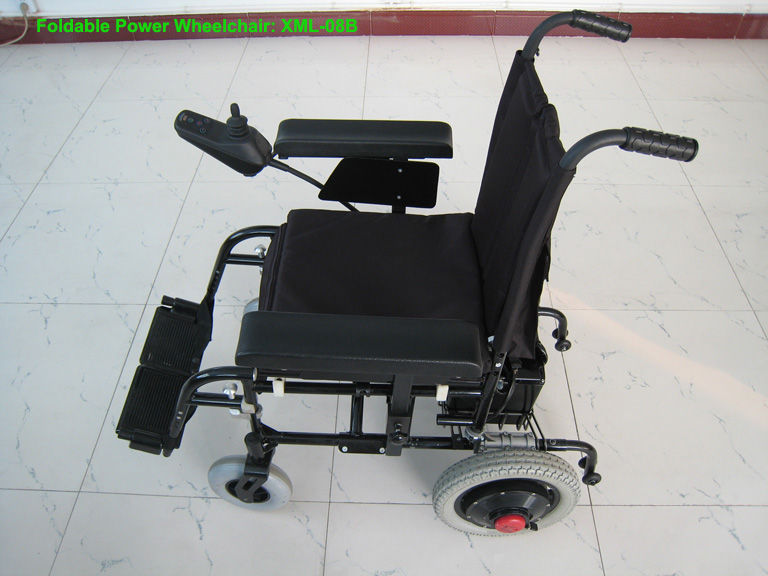

Foldable Electric Wheelchair : XML-08B, Gives You Extra Miles


Comfortable & Relaxing


Simple is Pretty!

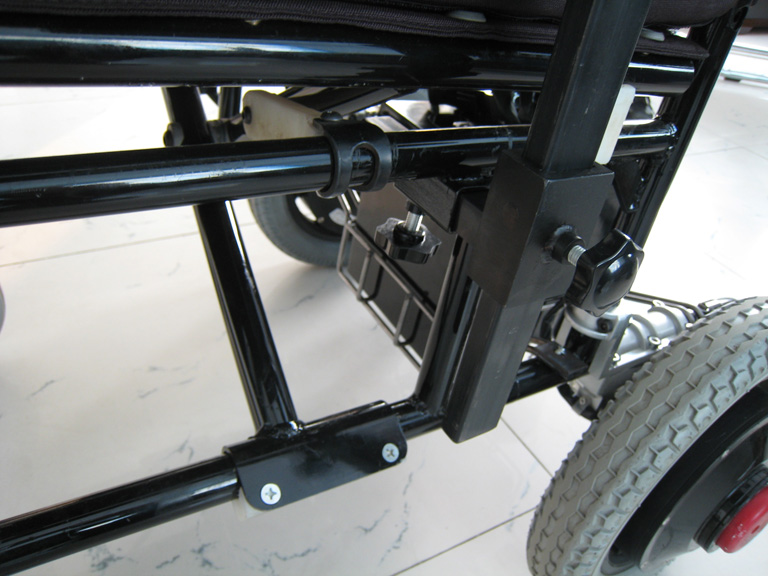

Adjustable Armrest: Wide or Narrow, High or Low


Every Care being Taken for Easy Access

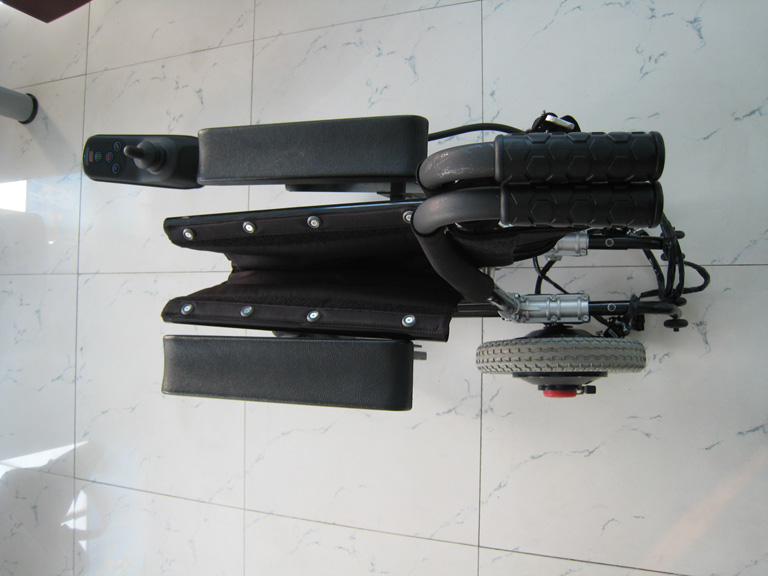

Fold & Carry


Watch e-Chair in Motion
[Enable ActiveX scripts to view this movie clip. Format: QuickTime .mov]


Power Wheelchair Specifications:
Product Model: XML-08B
Frame: steel
Top Speed: 4mph
Travel Range: up to 25Km
Standard Battery Pack: 24V/20AH (SLA)
Rated Motor Power: 24V/180W each
Current Draw at Level: 2A per motor with EMB enabled
Steering Controller: compact and stylish integral joystick with speed selector,horn and battery gauge,programmable
Weight Capacity: 120Kg
Max Incline Rating: 12 degree
Seat and Backrest Material: fire retardant polyester fibres
Safety Features: in-wheel EMB brake, brake release handle
Other Features: convenient back and front pouch for personal storage
Colors: Silver, Black, Blue, Red
Gross Weight (with battery): 46Kg
Weight without Battery: 32Kg
Battery with Casing (20AH SLA): 14Kg, removable
Motor Weight: 7Kg each x 2
Driving Wheel: 12" pneumatic or solid tyre
Front Caster Wheel: 7.5" solid tyre
Turning Radius: 21"
Seat Width: 16" to 20" adjustable
Overall Width: 26"
Armrests: adjustable width and height

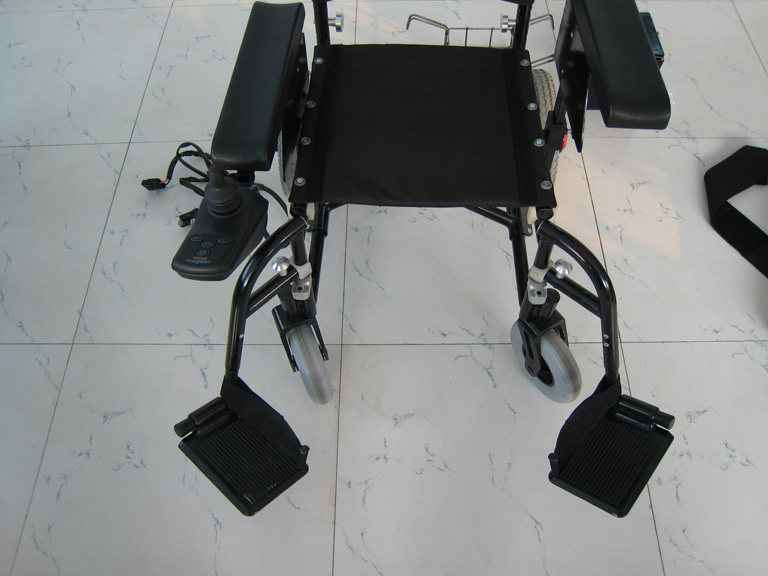

Footrests: removable,swing away footrests
Chair Packaging Box: 770 X 430 X 770mm (0.260 cbm), 34Kgs
Battery Box: 200 X 200 X 200mm (0.008 cbm), 14Kgs
20' Container Shipping: 115 units
40' Container Shipping: 240 units
40'H Container Shipping: 270 units



Speed and range will vary according to user weight, terrain, battery charge/condition and tire pressure.

Full Manufacturers Warranty included with purchase: 5 years on frame, 3 years on seat frame, 12 months on electronics, motor and brakes, 6 months on batteries.



We are seeking distributors worldwide for our innovative products!

OEM outsourcing manufacturing are also welcome. Our wheelchair experts will act quickly for any customization request.

We can offer our distributors unbeatable lowest wholesale prices thanks to our unique patented hub motor and wheelchair controller technology.
