MagicPie Kit -- with built-in maintenance-free multi-voltage controller

The Magic Pie kit is currently the most advanced bike conversion Kit. (Watch Test Ride Video)


Included in this kit:

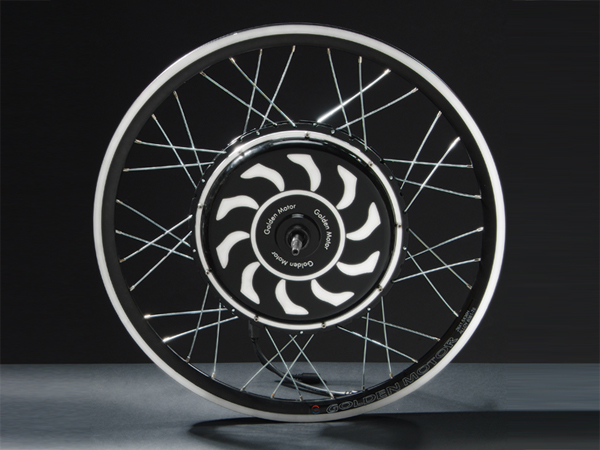

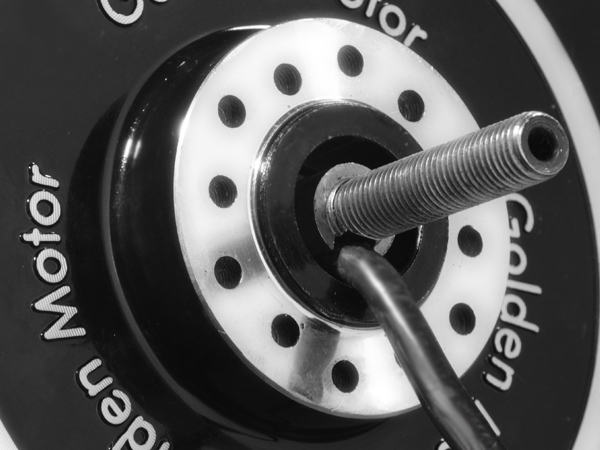

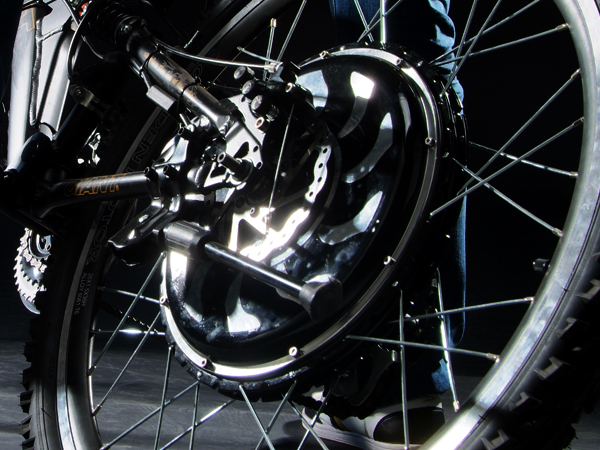

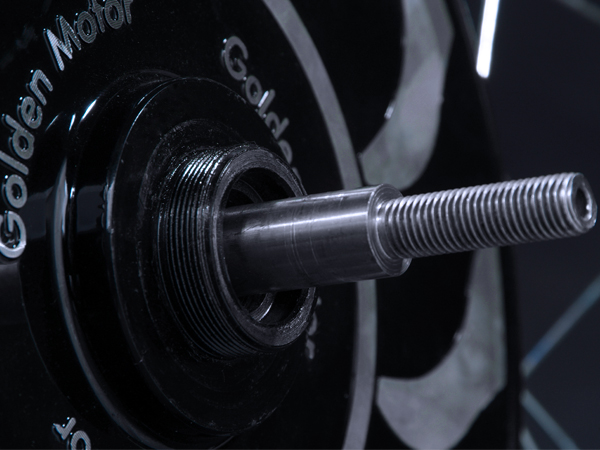

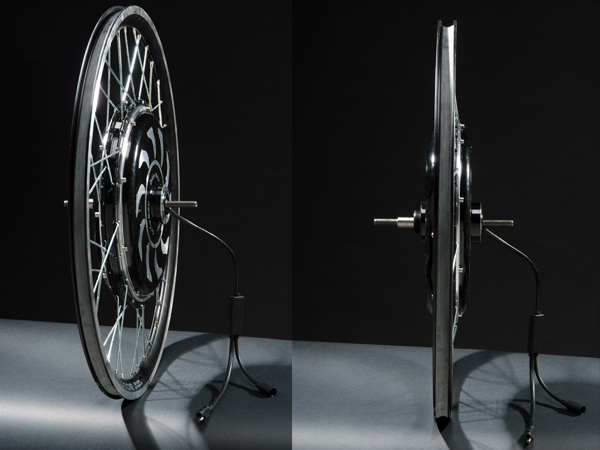

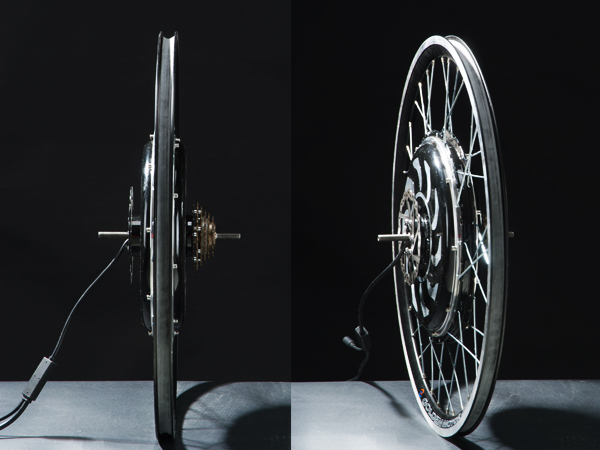

1) MagicPie Motor:
  Brushless gearless hub motor
  Maintenance-free built-in controller
  Regen-brakeing and cruise control
  Quick and easy conversion
  Accepts voltages: 24/36/48V
  Super thin motor for existing bikes
  Higher torque for climbing
  Double-wall Aluminium Rim


2) Throttles:
  Twist throttle
  or Thumb throttle


3) Brake levers


4) Control switches
  Cruise speed setting
  Light or horn


5) Battery and charger (not inlcuded)
  You can buy them separately


Performance Curve(PDF):  48Vdc  36Vdc  24Vdc      Data Sheet(PDF):  48Vdc  36Vdc  24Vdc

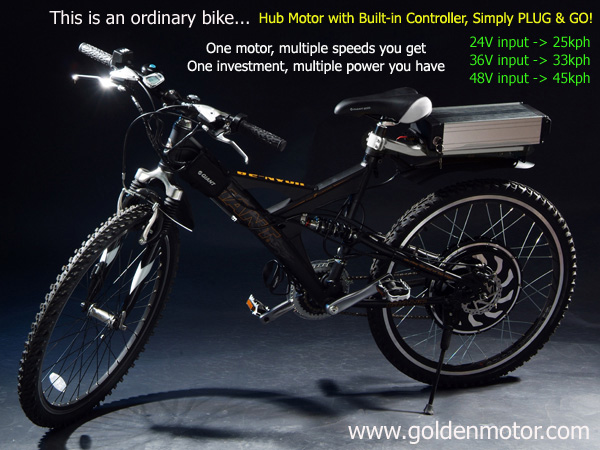

eBike Speed: 25kph/24V, 33kph/36V and 45kph/48V (Based on 26" rim, 80kg rider)


Electric bike Motor, hub Motor, electric bike kit, bike conversion kit, MagicPie 3, MP3

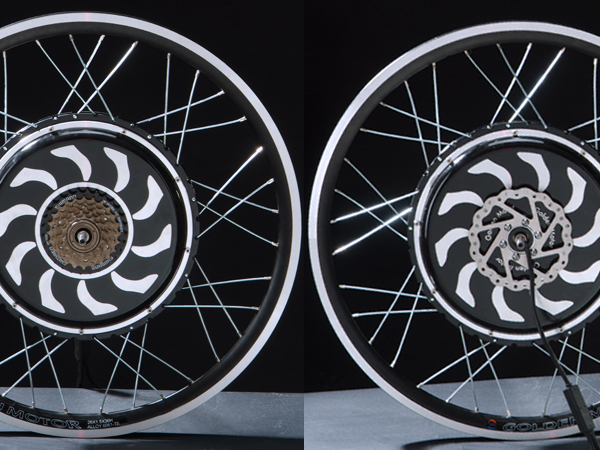

MagicPie 3 Kits

Model: MP3-26F
MagicPie 3
26" Front Kit
$383/set
Model: MP3-700F
MagicPie 3
700c Front Kit
$388/set
Model: MP3-28F
MagicPie 3
28" Front Kit
$389/set
Model: MP3-16F
MagicPie 3
16" Front Kit
$380/set
Model: MP3-18F
MagicPie 3
18" Front Kit
$386/set
Model: MP3-20F
MagicPie 3
20" Front Kit
$391/set
Model: MP3-26R
MagicPie 3
26" Rear Kit
$388/set
Model: MP3-700R
MagicPie 3
700c Rear Kit
$393/set
Model: MP3-28R
MagicPie 3
28" Rear Kit
$394/set
Model: MP3-16R
MagicPie 3
16" Rear Kit
$385/set
Model: MP3-18R
MagicPie 3
18" Rear Kit
$391/set
Model: MP3-20R
MagicPie 3
20" Rear Kit
$393/set



MagicPie 2 Kits

Model: MP-26F
MagicPie
26" Front Kit
$305/set
Model: MP-700F
MagicPie
700c Front Kit
$310/set
Model: MP-28F
MagicPie
28" Front Kit
$311/set
Model: MP-16F
MagicPie
16" Front Kit
$302/set
Model: MP-18F
MagicPie
18" Front Kit
$308/set
Model: MP-20F
MagicPie
20" Front Kit
$313/set
Model: MP-26R
MagicPie
26" Rear Kit
$310/set
Model: MP-700R
MagicPie
700c Rear Kit
$315/set
Model: MP-28R
MagicPie
28" Rear Kit
$316/set
Model: MP-16R
MagicPie
16" Rear Kit
$307/set
Model: MP-18R
MagicPie
18" Rear Kit
$313/set
Model: MP-20R
MagicPie
20" Rear Kit
$315/set



The kit comes with twist or thumb throttle, battery charger is not part of the kit.
Packing: 26" Kit Box: 69x23x69cm, 13.5kgs;   28"/700C Kit Box: 72x23.5x72.5cm, 13.5kgs


Image Gallery


Click to Magnify Click to Magnify Click to Magnify Click to Magnify Click to Magnify
Click to Magnify Click to Magnify Click to Magnify Click to Magnify Click to Magnify
Click on the thumbnail to enlarge the photo.
Javascript must be enabled.






High Capacity LiFePO4 Battery Pack for MagicPie Kits
24V16AH/36V12AH/48V10AH -- Same casing size for easy exchange



Product Characteristics:
  • Non-toxic, non-contaminating
  • Compact in size and light in weight (dimensions)
  • For all high power output applications
  • Can be used under extreme temperature
  • Extra long cycle life - 5 times life of Lead Acid and 2 times of NiMH
  • Extremely safe: no explosion, no fire under collision, over charged or short circuit

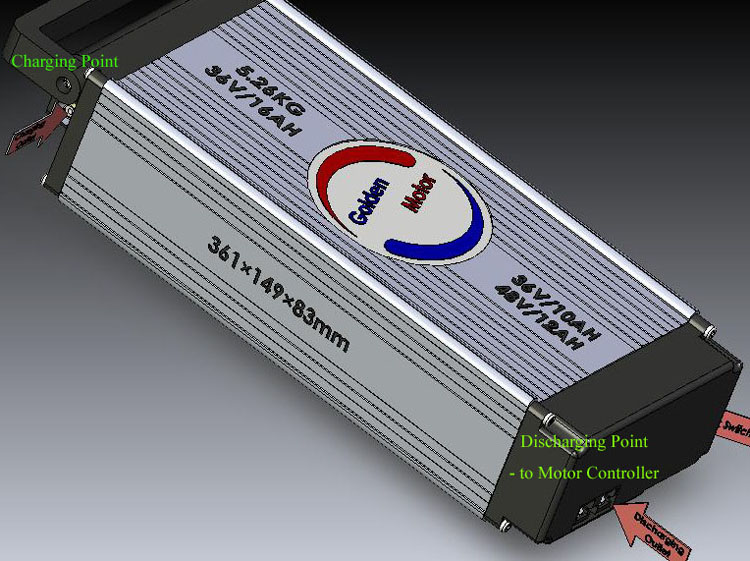

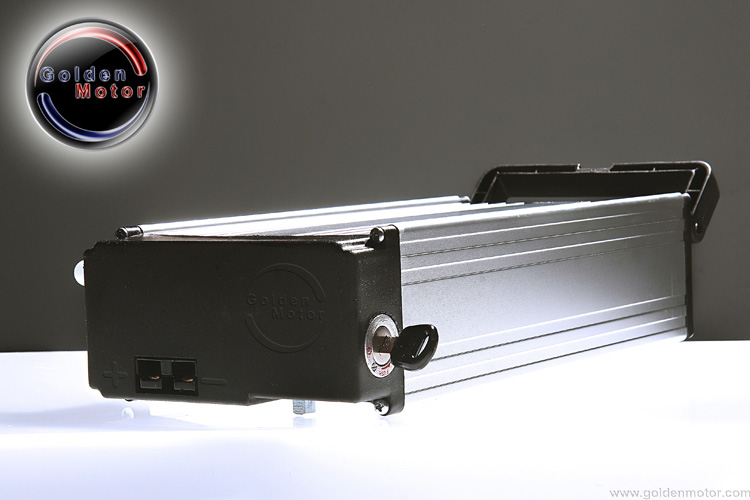

    Lithium Iron Battery Pack with BMS/Charger and Optional Sliding Rack


    Aluminium Casing with Switch/Key
    BMS and 110V-240Vac 2A Universal Charger Included (optional 4A)
    Weight: below 5.5Kgs
    Capacities: 24V/16AH, 36V/12AH, 36V/16AH, or 48V/10AH
    Max Discharge Current: 35A(12AH)/60A(16AH)
    Max Continuous Discharge Current: 20A(12AH)/30A(16AH)
    Charging Cycles: >800 times
    Ranges(full electric mode): 45Km(36V12AH) or 60Km(48V10AH)
    Packing Box Dimensions: 24cm X 24cm X 39cm





    LFP-3612S
    36V/12AH
    $316/set
    LFP-4810S
    48V/10AH
    $396/set
    LFP-2416S
    24V/16AH
    $298/set
    RAK-001
    Rear Sliding Rack
    $29/unit
    RAK-002
    Seat Post Rack
    $35/unit
