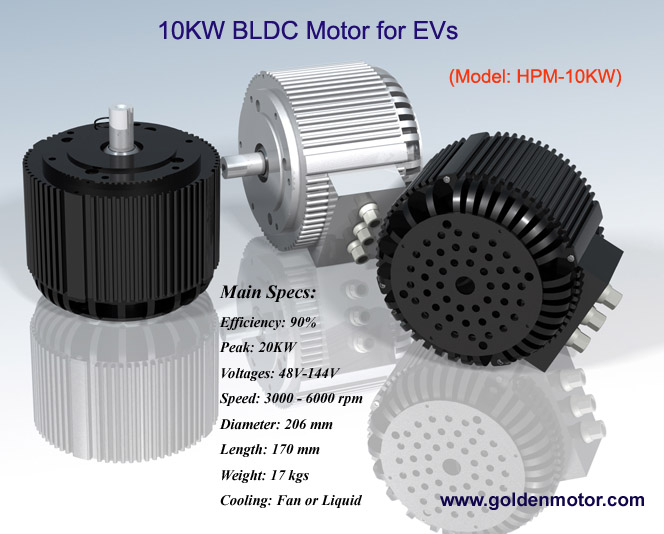

72V 10KW $765 |
120V 10KW $765 |
96V 10KW $765 |
48V 10KW $765 |
High Power BLDC Motors -- Amazing Performance beyond your imagination! |

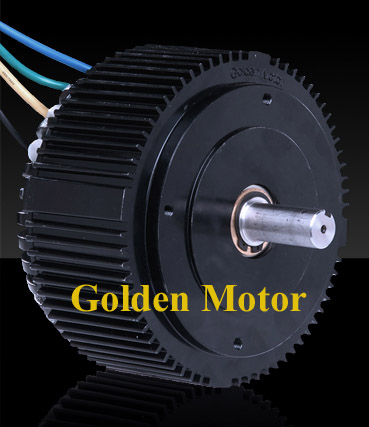

Model: HPM5000B -- High Power BLDC Motor Voltage:24V/36V/48V/72V Rated Power:3KW-7.5KW Efficeincy: 91% Speed: 2000-6000rpm (customizable) Weight:11Kgs Casing: Aluminium Length (height): 126mm Diameter: 206mm Shaft: customizable Features: Compact design,Water resistent, Stainless Steel Shaft, Self Cooling Fan Applications: Electric car, electric motorcycle, electric tricycle, electric golf carts, fork lift, electric boat, etc. Drawing(.pdf) 3D View Buy Now
|

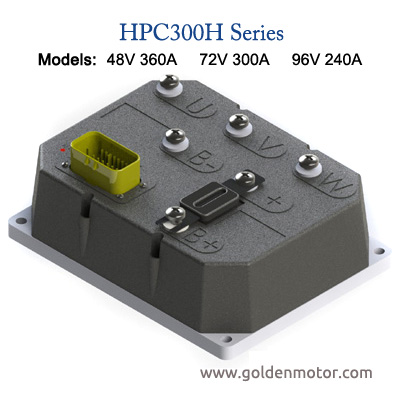

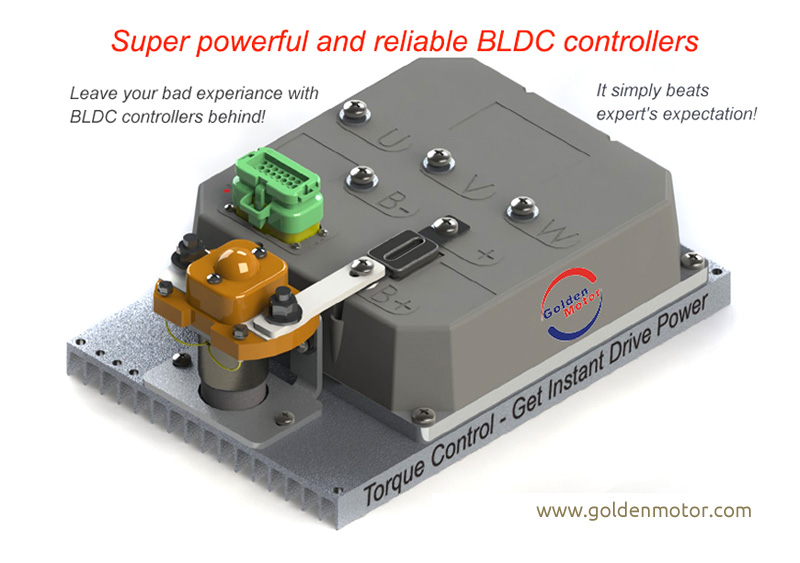

Model: HPC300 Series -- Brushless Motor Controller Voltage Ranges:48V(~60V)/72V(~90V)/96V(~140V) Rated Current (Max):360A/300A/240A Weight:2.2Kgs Dimensions: 192x146x77mm Features: Programmable via USB port, Fuse breaker, Regen Braking, Temperature sensoring Wiring Diagram (with contator) Technical User Guide HPC300H Controller Dimensions
|
|||||||

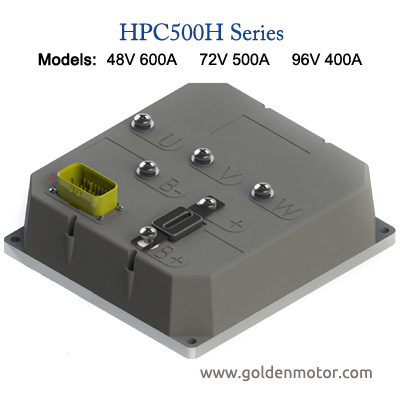

Model: HPC500 Series -- Brushless Motor Controller Voltage Ranges:48V(~60V)/72V(~90V)/96V(~140V) Rated Current (Max):600A/500A/400A Weight:2.9Kgs Dimensions: 192x208x77mm Features: Programmable via USB port, Fuse breaker, Regen Braking, Temperature sensoring Wiring Diagram (with contator) Technical User Guide HPC500H Controller Dimensions
|
|||||||
Model: HPC700 Series -- Brushless Motor Controller Voltage Ranges:48V(~60V)/72V(~90V)/96V(~140V) Rated Current (Max):840A/700A/560A Weight:5.7Kgs Dimensions: 200x276x85mm Features: Programmable via USB port, Fuse breaker, Regen Braking, Temperature sensoring Wiring Diagram (with contator) Technical User Guide HPC700H Controller Dimensions
|

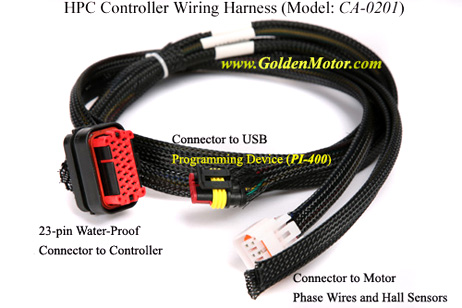

Model: CA-201 -- HPC Controller Wiring Harness 23-pin Water-Resistent Connector Dynamic Montoring Connector Buy Now ($30) |

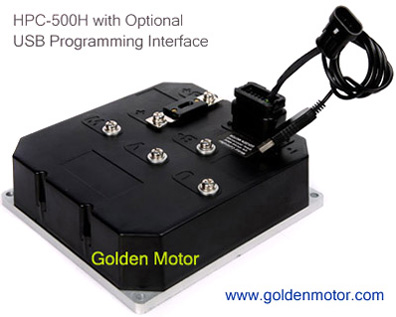

Model: PI-400 -- HPC Controller Programming Kit Easy Installation for PC/laptop with Windows OS Easy USB Port Connection Setup Parameters without Power-on Controller Monitor Motor Performance Dynamically Buy Now ($80) |

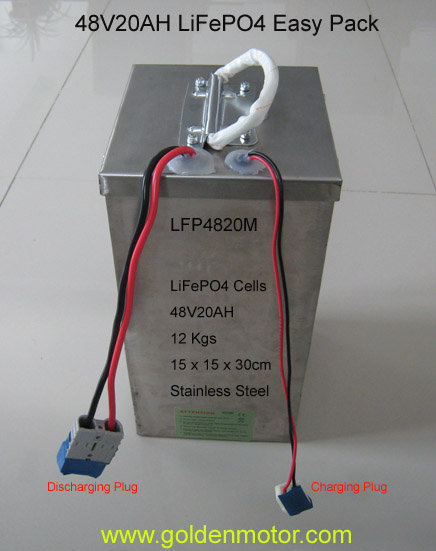

48V/20AH $655/set |
...Credit cards via PayPal... |

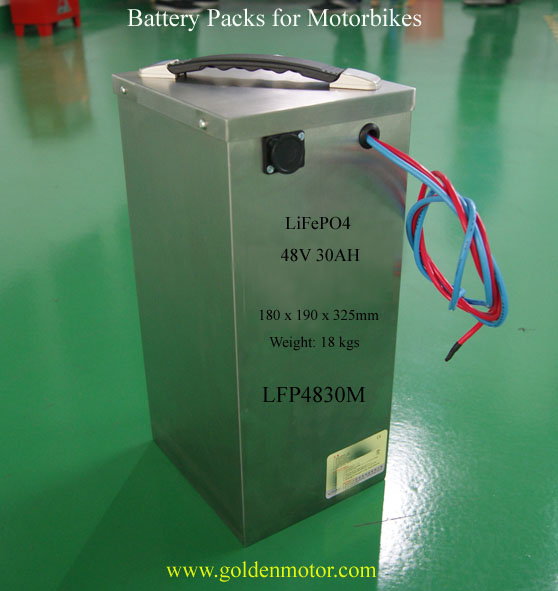

48V/30AH $820/set |
...Credit cards via PayPal... |
